Minimalist sliding bay operator

La motorisation for minimalist sliding systems is a compact solution designed to automate minimalist sliding glass windows with simple, flexible integration. Unlike the moteur de coulissant minimaliste INVISI 300 qui s’installe sur le dessus du dormant, la motorisation INVISI 200 se fixed to the side frame, This allows installation without the need for large recesses around the joinery or difficult machining.

This motorisation ensures smooth, safe and silent leaf operation, This makes large windows even more comfortable to use, while remaining invisible.

Developed for integration by industrial designers and manufacturers of minimalist joinery, This solution adapts to the technical constraints of each project and allows minimalist sliding systems to be motorised with a minimum of structural modifications, This makes it a particularly appropriate solution for many architectural projects.

• Convenience and ease of use
• Sober design and discreet integration

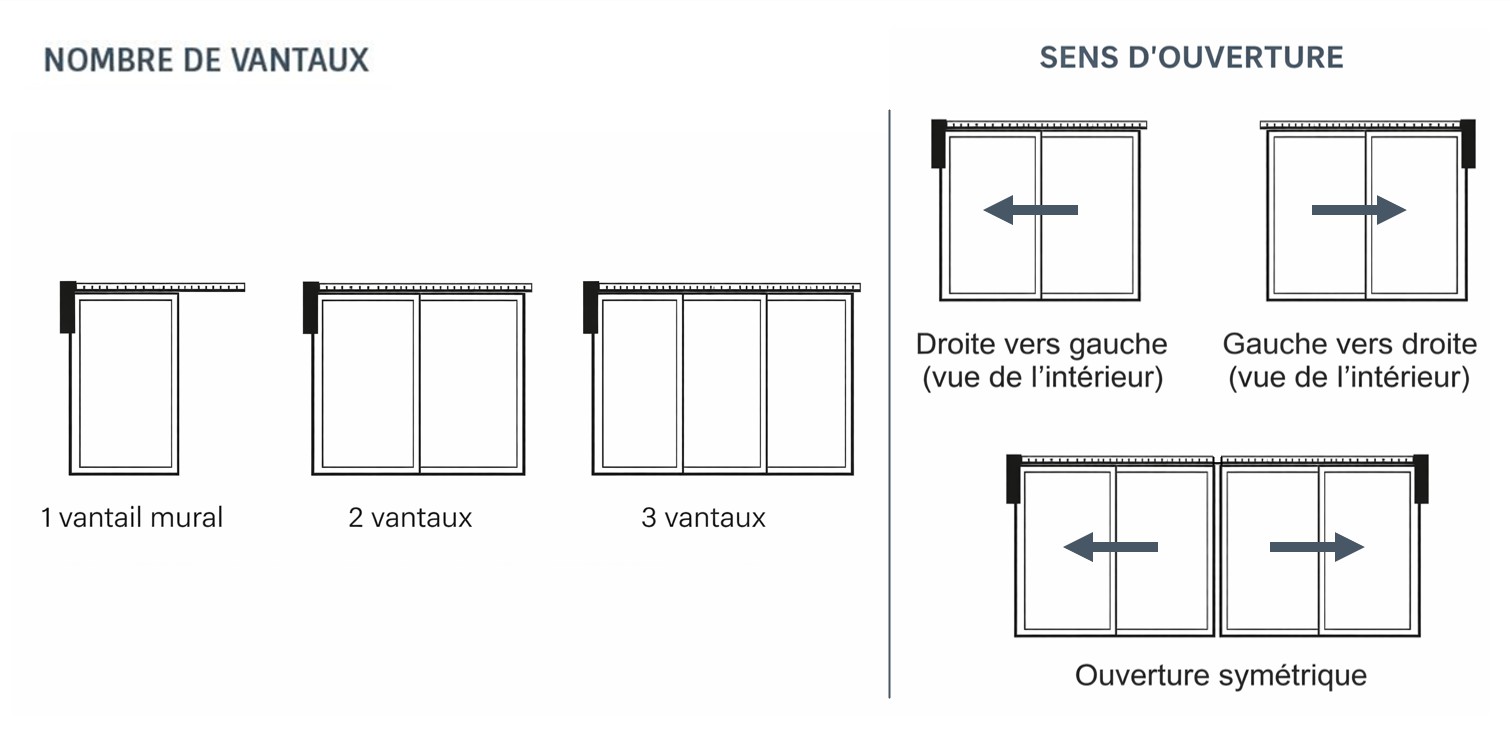

• Gestion multi-configurations (ouverture en angle, symétrique…)
• Fast (150mm/s) and silent movement
• Anti-pinch protection

• Maximum theoretical weight that can be moved: 700kg
• Tensile force of 200 Nm
• Up to 2 motorised leaves
• Acceleration and deceleration phase
• Simple operation by radio or wired switch
• Compatible with BMS, BMS or home automation systems
• Electromechanical locking
• Noise level below 60 dB
• Remote programming
• 230VAC supply voltage
